BMW N74 6.0 & 6.6 Twin Turbo V12: Specs, ECUs & Maintenance
BMW · Engine information · U.S. & Canada
N74
Twin-turbo V12 · Quiet delivery, deep reserves
The N74 combines V12 smoothness with strong low-speed boost. Its 6.0- and 6.6-litre versions use different generations of electronics, with a dedicated controller for each bank and substantial changes in the M760i update.
Architecture
- 6.0-litre code
- N74B60U0
- 6.6-litre codes
- N74B66U1 / U2
- Bore × stroke
- 89 × 80 mm / 89 × 88.3 mm
- Compression
- 10.0:1
- Block / heads
- Aluminium / aluminium
- Valvetrain
- DOHC · 48 valves · double VANOS
Airflow & fuel
- Turbo layout
- One turbo outside each cylinder bank
- Charge cooling
- Liquid-cooled
- Injection
- Direct · up to 200 bar on listed versions
- Valve lift
- Fixed lift · no Valvetronic
- Load control
- Electronic throttles and boost
- DME layout
- Two units · one per cylinder bank
Engine controllers · MSD87-12 and Bosch MG1
The 6.0-litre engine uses Continental/Siemens MSD87-12 electronics. The 6.6-litre technical update moves to Bosch’s modular DME platform. Both use coordinated bank controllers; the later units are water-cooled through the charge-air cooling circuit.
| Controller | Applications & timing | Technical distinction |
|---|---|---|
| Continental/Siemens MSD87-12 | N74B60U0 · F02 760Li, 2010–2015 | Two DMEs; original direct-injection and twin-turbo management. |
| Bosch MG1CS003 · DME 8.C.0 | N74B66U1 · initial G12 M760i, 2017–2019 | MPC5777; two water-cooled controllers. “C” denotes twelve cylinders in BMW’s hexadecimal designation. |
| Bosch MG1CS024 · DME 8.C.T0 | N74B66U2 · updated M760i applications | TC298; revised hardware and software associated with the later technical update. |
Confirm the installed U1/U2 engine revision and both DME identifiers on facelift cars. Market and emissions specifications can differ; a generic “M760i ECU” listing is insufficient for replacement.
Selected U.S. & Canadian vehicles
| Model | Chassis | Model years | Engine / factory output |
|---|---|---|---|
| 760Li | F02 | 2010–2015 | N74B60U0 · 536 hp / 553 lb-ft |
| M760i xDrive | G12 | 2017–2019 | N74B66U1 · 601 hp / 590 lb-ft |
| M760i xDrive | G12 | 2020–2022 | Updated 6.6 · 600 hp / 627 lb-ft |
North American factory ratings shown. The G12 M760i retains the long-wheelbase body despite its shorter model name.
Common issues & key risks
Internal coolant-pipe leaks. Transfer-pipe seals can deteriorate with age. Pressure-test persistent coolant loss and inspect the engine valley and pipe connections before replacing unrelated components.
Crankcase ventilation. Failed pressure-control components can cause whistling, rough idle or increased oil consumption. Measure crankcase pressure and inspect hoses and seals.
Ignition misfires. Worn plugs and failing coils can cause hesitation, particularly under load. Early N74s also had a spark-plug service action; confirm build applicability and repair history.
Oil & turbo-area leaks. Check cover seals and turbo oil/coolant connections when levels fall or burning smells appear. Identify whether smoke comes from an external leak or the exhaust.
Fuel-pressure faults. Hard starts and bank-specific misfires need low- and high-pressure fuel tests. Compare both banks and check electrical supply before choosing pumps, injectors or controllers.
Keep it consistent: Use the correct BMW oil approval and maintain cooling-system condition. Record both controller identities and service history to make future diagnosis more efficient.
References
| Topic | Source |
|---|---|
| 6.0-litre specification | BMW F01/F02 technical update training |
| 6.6-litre engineering | BMW N74TU technical training |
| Initial M760i rating | BMW USA: 2017 M760i |
| Updated M760i rating | BMW USA: 2020 7 Series |
| V12 coolant-pipe repair | AGA Tools · N73/N74 coolant pipe |
| Crankcase-pressure diagnosis | BMW SI B11 03 08 |
| Early spark-plug issue | BMW SI B12 22 09 · CHARM archive |

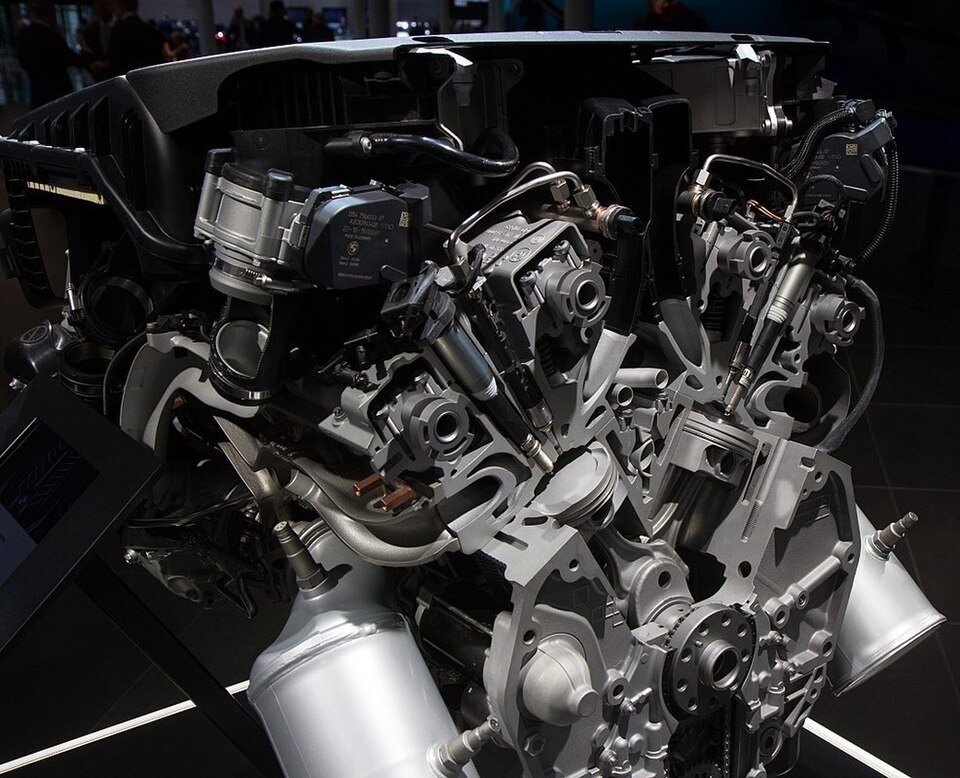

| Photograph | BMW N74 V12 display engine cutaway. Photo: Olaf Kosinsky; edited by Wikisympathisant · CC BY-SA 4.0. Resized. Original photograph: Olaf Kosinsky · CC BY-SA 3.0 DE. |
Model years refer to selected U.S. and Canadian applications. Equipment and software vary by build. Use current BMW service information for diagnosis and repair.
