GM Vortec 4.3L V6 LU3: Specs, Engine Codes, Controllers & Maintenance
Engine Information · GM · Legacy Vortec
Vortec 4.3L V6 LU3

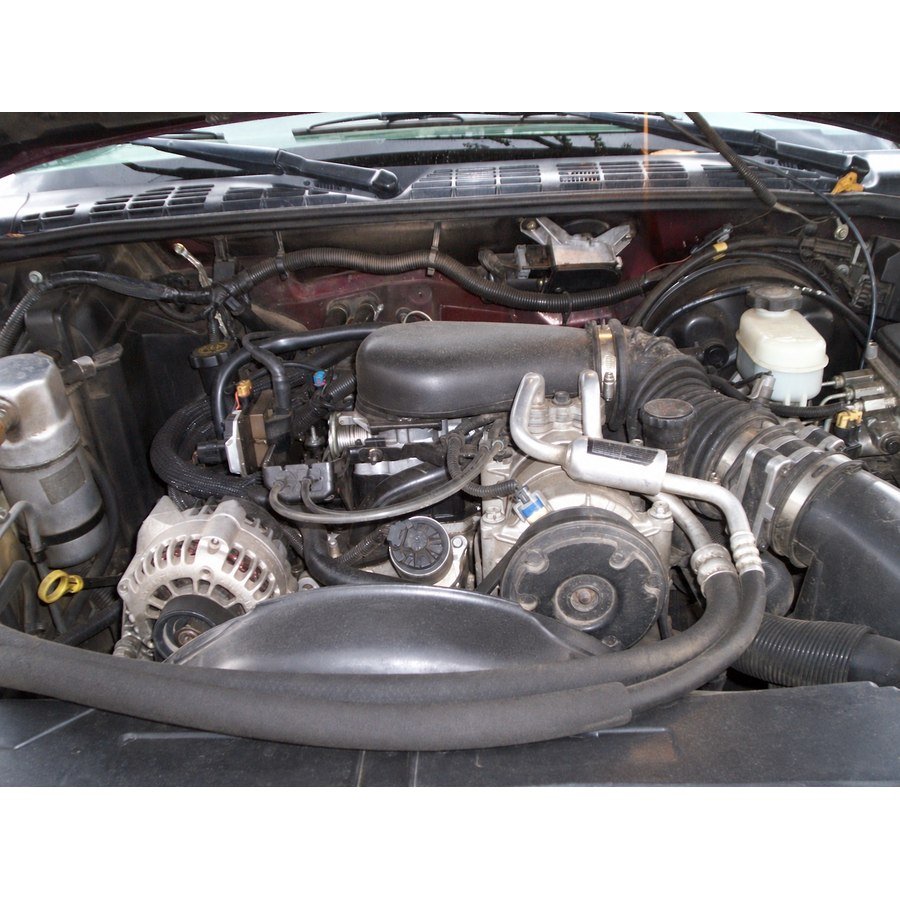

The LU3 is the familiar workhorse V6 behind many basic GM pickups and vans. Its iron construction, pushrod valve gear and port injection keep it mechanically straightforward, but age-related ignition and fuel-system faults deserve more attention than its modest power rating.
Engine construction
| Specification | Details |
|---|---|
| Capacity / layout | 4.3L · 90° V6 |
| Construction | Cast-iron block and heads |
| Valve gear | OHV · 12 valves · chain-driven camshaft |
| Fuel / induction | Port injection · naturally aspirated |
Codes & output
| RPO / version | Power / torque | Key difference |
|---|---|---|
| LU3 | 190–195 hp / 250–260 lb-ft | Rating depends on vehicle; this is the older port-injected 4.3 |
SAE horsepower; torque in lb-ft. Ratings are for the stated application and fuel, rather than every vehicle with this RPO.
Vehicles & model years
| Brand | Model | Model years | Platform / chassis | Engine RPO |
|---|---|---|---|---|
| GMC | Sierra 1500 | 2005–2013 | GMT800 / GMT900 | LU3 |
| Chevrolet | Silverado 1500 | 2005–2013 | GMT800 / GMT900 | LU3 |
| GMC / Chevrolet | Savana / Express | 2005–2014 | GMT610 | LU3 |
| GMC / Chevrolet | Safari / Astro | 2005 | M / L | LU3 |
U.S. and Canadian applications within the 2005–2026 matrix scope. Engine availability depends on trim, build date and emissions certification.
Engine controllers
| Application / revision | ECM or PCM | Identification & function |
|---|---|---|
| 2005–2007 pickup applications | GM P59 / LS1B PCM | Fuel, ignition and transmission control; exact van hardware must be checked |
| 2008–2013 pickups | GM E37 ECM | CAN-based engine management; separate transmission calibration |
Identify the module from its service number, operating-system ID and VIN. The ECM/PCM and transmission controller have separate calibrations on many applications; a matching RPO alone does not make a replacement module plug-and-play.
Common issues & maintenance
- Ignition breakdownDistributor cap, rotor, leads and plugs can cause damp-weather misfires; confirm spark quality before replacing injectors.
- Fuel deliveryHard starting or lean running calls for a fuel-pressure and leak-down test, followed by checks for injector or intake leaks.
- Oil / coolant leaksInspect aged intake, cover and cooling-system seals. Low fluid levels can turn an inexpensive leak into major engine damage.
Keep it healthy. Keep the ignition system dry and serviced, use the specified oil, and diagnose fuel pressure rather than assuming every hard start is a failed pump. The later LV1 van engine is a different direct-injection design.
References & technical sources
| Source | Reference |
|---|---|
| GM applications & RPO diagnostic matrices | View source |
| EFILive production controller database | View source |
| EFILive GM gasoline controller families | View source |
