Volkswagen / Audi / Porsche
EA897 3.0 V6 TDI
The EA897’s appeal is torque: 406–428 lb-ft from a smooth, compact V6. Common-rail injection, a variable-geometry turbo and carefully controlled cooling give this 3.0-litre diesel its character in everything from the Audi A6 to the Porsche Cayenne.
Specifications
Architecture
- Family
- EA897
- Layout / mounting
- 90° V6 · longitudinal
- Displacement
- 2,967 cc / 3.0 L
- Bore × stroke
- 83.0 × 91.4 mm
- Compression ratio
- 16.8:1
- Firing order
- 1–4–3–6–2–5
Construction
- Cylinder block
- Compacted graphite cast iron
- Cylinder heads
- Aluminum alloy
- Crankshaft / rods
- Forged steel
- Pistons
- Aluminum · oil cooled
- Valvetrain
- DOHC per bank · 24 valves
- Timing drive
- Two rear chains · geared cam links
Fuel & engine control
- Fuel
- Ultra-low-sulfur diesel
- Injection
- Common rail · piezo injectors
- Rail-pressure capability
- 2,000 bar / about 29,000 psi
- High-pressure pump
- Bosch CP4.2 · chain driven
- ECU family
- Bosch EDC17CP44
- Balance shaft
- Single · chain driven
Air, cooling & lubrication
- Turbocharger
- Single · variable turbine geometry
- Charge-air cooling
- Air-to-air intercooler
- Intake / EGR
- Single swirl flap · cooled EGR
- Cooling layout
- Separate head / block circuits
- Oil pump
- Variable flow · two pressure stages
- Exhaust treatment
- Oxidation catalyst · DPF · SCR / DEF
Engine codes & controllers
| Specification | CPNA | CPNB | CNRB |
|---|---|---|---|
| Model years below | 2014 | 2014–2016 | 2013–2016 |
| Bosch ECU | EDC17 | EDC17 | EDC17 |
| Advertised power | 240 hp | 240 hp | 240 hp |
| Peak torque | 580 Nm428 lb-ft | 580 Nm428 lb-ft | 550 Nm406 lb-ft |
| Oil approval | VW 507 00 | VW 507 00 | VW 507 00Audi / VWPorsche C30Cayenne |
| Reference oil fill* | 6.4 L | 6.4 L | 7.7 LQ7 / Touareg |
The shared ECU family does not make controllers interchangeable. Match the VIN, engine code and full hardware/software IDs before replacement or programming.
*Approximate service fills with filter. Confirm the model-specific procedure and final level; use the Cayenne’s own service data for its fill quantity. Output figures are original advertised ratings.
Vehicles by engine code
| Engine code | Vehicle | Model years | Chassis |
|---|---|---|---|
| CPNA | Audi A8L TDI | 2014 | D4 |
| CPNB | Audi A6 TDI | 2014–2016 | C7 |
| Audi A7 TDI | 2014–2016 | C7 | |
| Audi A8L TDI | 2015–2016 | D4 | |
| Audi Q5 TDI | 2014–2016 | 8R | |
| CNRB | Audi Q7 TDI | 2013–2015 | 4L |
| Porsche Cayenne Diesel | 2013–2016 | 92A / 958 | |
| Volkswagen Touareg TDI | 2013–2016 | 7P |
U.S. and Canadian applications. Engine codes provide the clearest reference for these EA897 installations.
Care & trouble spots
- Oil and intervals. Use the approval listed above and follow mileage and time limits. Severe cold, dusty conditions and demanding use may call for earlier service; check the oil level between changes.
- Intake and EGR. Deposits can restrict airflow. Diagnose flap operation, EGR flow and boost leaks before cleaning or replacing parts.
- EGR temperature sensor. Audi documented intermittent sensor faults on certain 2014–2015 CPNA, CPNB and CNRB vehicles. Match the fault and VIN before ordering parts.
- Cooling and leaks. Investigate coolant loss, unusual temperatures and oil leaks promptly. Locate the source before replacing a cooler, pump or seal.
- Fuel system. Keep fuel-filter servicing current. Hard starting or low rail pressure needs proper supply, pump and injector testing.
- DPF and DEF. Check sensor readings, soot/ash loading and SCR operation when warnings appear. Use the correct AdBlue fluid and address restart warnings promptly.
- Turbo and timing drive. Warm up gently and let temperatures settle after sustained heavy loads. Investigate new chain noise, oil-pressure warnings or changes in boost response.
Inspect first; clean as needed. Base intake and EGR cleaning on deposits, symptoms and service history. There is no universal 80,000 km cleaning interval.
References & image credit
| Topic | Sources |
|---|---|
| Design & specifications | Audi SSP 920213 Audi CPNB specifications Audi U.S. TDI brochure Porsche Cayenne Diesel specifications |
| Vehicles & model years | EPA application list Porsche: CNRB, U.S./Canada Audi: 2014 A8L / CPNA Audi: 2016 A8L / CPNB |
| Oil approval & reference fills | Audi: Q5 Audi: Q7 Volkswagen: Touareg Porsche C30 approval |
| Maintenance & diagnosis | Audi service schedule Touareg TDI service schedule Audi EGR temperature-sensor bulletin Garrett: turbo failure causes |
| Engine illustration | Audi Technology Portal · Audi AG 2011 |

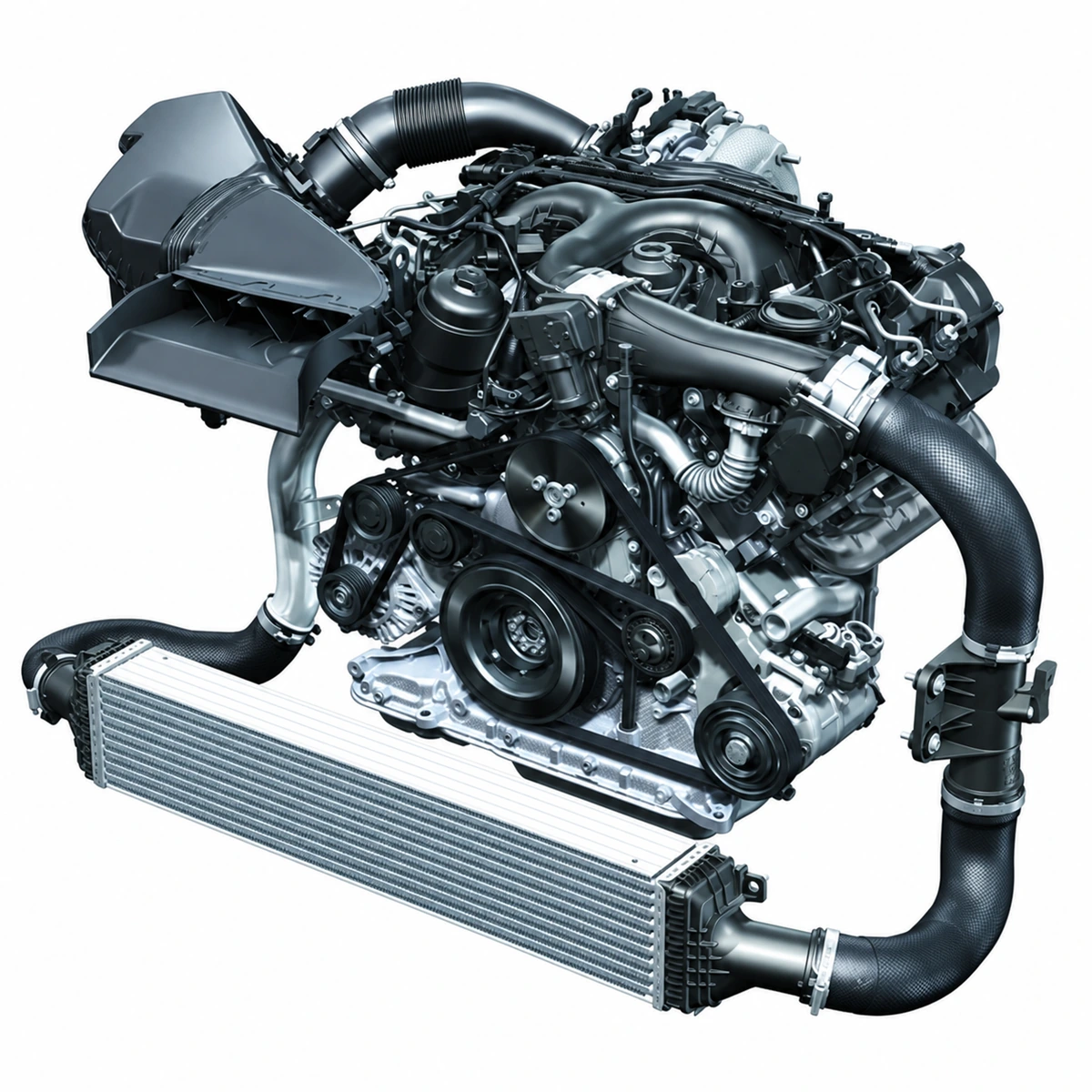

Original ECU5 editorial overview of the North American applications listed above. Engine illustration: Audi AG 2011, supplied for editorial use; adapted to square format with AI image editing. Vehicle names identify the models discussed. ECU5 is independent of Volkswagen, Audi and Porsche.
